DELKOR Overhead Filter Presses, Successful Installation and Commissioning

As of mid-June 2019, three DELKOR overhead filter presses (FP OH, overhead beam filter presses) were successfully installed at a gold mine processing plant in Uzbekistan, as part of the plant’s gold tailings dewatering system. These machines form an important part of TAKRAF’s complete solution to Dry Stack Tailings (DST) technologies – from sedimentation to filtration and material handling.

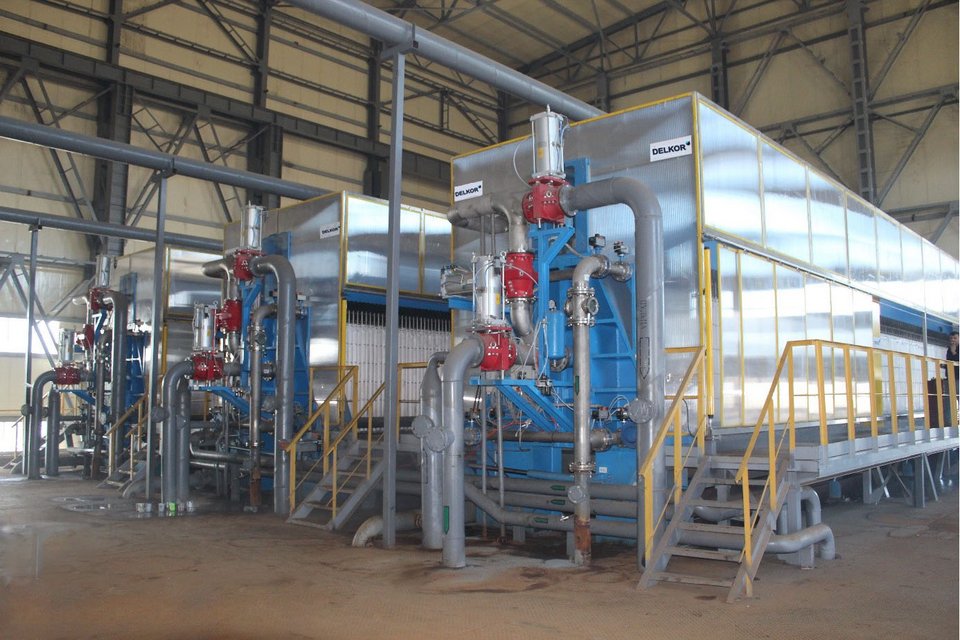

DELKOR Overhead filter presses FBR

The system comprises three DELKOR overhead filter presses (FP OH) each processing ~120 m3/h of gold tailings. Each machine contains 177 mixed membrane filter plates with a size of 2 m x 2 m and also includes a high-pressure cloth washing system.

The supply also included a number of ancillary equipment, including: belt conveyors for cakes discharged from the filter press (each machine is equipped with a cake breaker), pumping skids for membrane inflation, filter cake washing pumps and high-pressure cloth washing pumps. The entire scope of supply, including the slurry feed pumps, is fully controlled and managed by state-of-the-art software.

The complexity of the dewatering process required by this project clearly highlights DELKOR’s filter press potential across the dewatering spectrum. In fact, the filter press cycle includes filter cake squeezing, filter cake washing and filter cake air blowing, with the filter cakes washed with process water in order to remove unwanted residual cyanides from the dewatered cakes. Importantly, the required residual moisture content within the dewatered cakes was achieved immediately during start-up.

Marco Zeni, DELKOR Project Manager had this to say from site, “Notwithstanding demanding site conditions, installation and commissioning, together with the required operational training, was successfully completed. With this project, we take another important step towards firmly establishing DELKOR also as a provider of filter presses to round up the filtration product portfolio and once again demonstrating that: It pays to talk to a specialist.”
