• Stacker, rail-mounted, 6,300 t/h, bulk terminal Australia

Stockpiling with a Stacker

To begin off: What is a stacker? Stackers are bulk stockpiling machines that are used to stack or heap material in stockyards in different shapes according to specific requirements. A stacker’s function is to stack, heap or pile material on to a stockpile for future reclamation.

Stacker functionality

Stackers typically move on a rail between stockpiles in a yard and usually have three directions of movement, depending on requirements:

  • Horizontally along the rail
  • Vertically by luffing (raising or lowering) the boom
  • Slewing, which is rotation of the stacker around its central axis and may not always be a requirement

Our stacker range

TAKRAF supplies a complete range of stackers for the heaping of circular or longitudinal piles, as well as for the homogenizing and blending of material. The structure of the stockpile is dependent on the specific requirements of the various bulk processes, ie. chevron, windrow, strata or cone shell.

Tailored stacker systems

Our machines are all specifically designed to our client's unique requirements and incorporate various solutions according to their specific application, including any specific automation requests, such as an automated storm lock for gust winds.

Our typical machines cover the following flow rates and sizes:

  • Capacity:                    300 t/h to 20,000 t/h
  • Outreach:                   15 m to 60 m
  • Rail gauge:                 4 m to 12 m

We have supplied a variety of different machines across numerous commodities around the world, each with their own specific configuration that is fit for purpose. Depending on specific requirements, we are able to supply machines with a boom length of up to 200 m.

We also offer combined stackers and reclaimers.

Stacker iron ore, South Africa
TAKRAF stacker for iron ore in South Africa.

Typical design structure of a stacker

Our machines generally boast a typical design structure and include a hydraulic lift system and counterweight at the rear end of the boom - this often leads to them being classified as a "balanced machine" in some countries. Nonetheless, we have also built machines to handle ore which boast an L-frame, a rope winch and a horizontal swivel boom. Also, as mentioned, we offer machines with or without the ability to slew.

Radial stacker

A particularly intricate and special design that we are also able to provide is what is known as a "radial stacker". This design is employed in order to produce a circular-shaped pile and the design relies on a central point of rotation on a circular rail.

We leverage our years of providing numerous stackers around the world across various commodities and the harshest operating conditions to ensure peace of mind and superior operational efficiency. Let us show you why we are the stacker company of your choice.

Stacker, radial, ash, Russia
TAKRAF radial stacker for ash in Russia.

We leverage our years of providing numerous stackers around the world across various commodities and the harshest operating conditions to ensure peace of mind and superior operational efficiency.

References

  • A lineup of advanced stackers designed for coal handling in Australia
    Customer
    Project Name
    Caval Ridge
    BMA – BHP Billiton Mitsubishi Alliance
    2014

    Stackers with an elevator conveyor

    These two stackers are operating with one reclaimer on the same rail track. The two stackers have one feeding conveyor. Therefore the first stacker in the line is equipped with a bypass system. Both stackers have an elevator conveyor and are of the slewable and luffable design. These machines can be operated in automatic mode from the control room or in remote mode.

    Project figures

    coal
    2,900 t/h
  • A robust stacker designed for handling raw coal in the Australian mining industry
    Customer
    Project Name
    Caval Ridge
    BMA – BHP Billiton Mitsubishi Alliance
    2014

    Stacker in Caval Ridge mine near Moranbah, Queensland

    This stacker is of slewable and luffable design and can be operated in automatic mode from the control room or in remote mode.

    Project figures

    raw coal
    2,900 t/h
  • A powerful stacker designed for efficient iron ore handling
    Customer
    Project Name
    Kowdor
    OAO "EVROCHIM“
    2014

    Stacker in opencast mine Kowdor near Murmansk

    This machine is designed to operate in very low temperatures and is provided with a water tank that can be heated for dust suppression. The operator can also use the stacker in fully automated operation mode if required.

    Project figures

    iron ore
    3,000 t/h
  • A robust stacker designed for efficient coal handling at a seaport terminal
    Customer
    Project Name
    Ust Luga Phase IV
    KRUTRADE AG (Rosterminalugol)
    2010

    Stacker for coal terminal of seaport Ust Luga, Phase IV

    This machine is part of a complex stockyard system delivered entirely by TAKRAF. The machine is designed for extreme temperatures, from very low -38 °C up to very hot +40 °C.

    Project figures

    coal
    3,500 t/h
  • A specialized stacker designed for handling of lumpy iron ore
    Customer
    Project Name
    Sishen
    Kumba Iron Ore (a division of AngloAmerican)
    1999

    C-frame and boom luffing stacker in Sishen Iron Ore Mine

    This stacker is built with a C-frame and boasts a boom luffing system with winch. It is also able to slew in order to serve two stockpiles. The stacker is prepared for fully automated operation.

    Project figures

    lumpy iron ore
    5,300 t/h

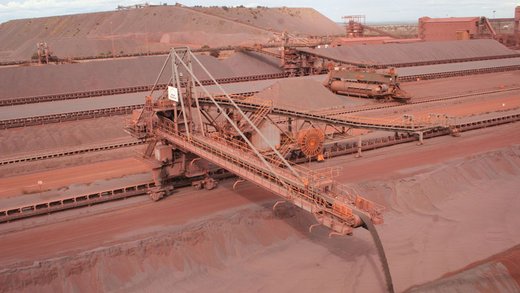

  • A high-performance stacker designed for the precise handling of iron ore fines in South Africa
    Customer
    Project Name
    Sishen South
    Kumba Iron Ore (a division of AngloAmerican)
    2010

    Stacker in Kolomela Mine, Northern Cape Province

    This stacker is slewable and luffable via a hydraulic system and can be operated in automatic mode.

    Project figures

    fine ore
    1,150 t/h
  • A radial stacker specifically designed for efficient ash handling
    Customer
    Project Name
    OGK-5
    Enel OGK-5, Russia
    2010

    Radial stacker designed for extreme climate conditions

    This radial stacker is built to manage ash handling for the emergency pile and is designed for extreme operating temperatures, from very low -45 °C to very hot  +40 °C.



    Project figures

    ash
    2,200 t/h
  • Value for Money

    • We're able to design and build machines according to our client's specific requirements
  • Efficiency

    • We design, fabricate and supply a wide-range of machines for the heaping of round, longitudinal and kidney-shaped piles; as well as homogenizing and blending with capacities from 300 t/h to 20,000 t/h
  • Reference

    • We boast a comprehensive reference list across a variety of different applications and ore types
