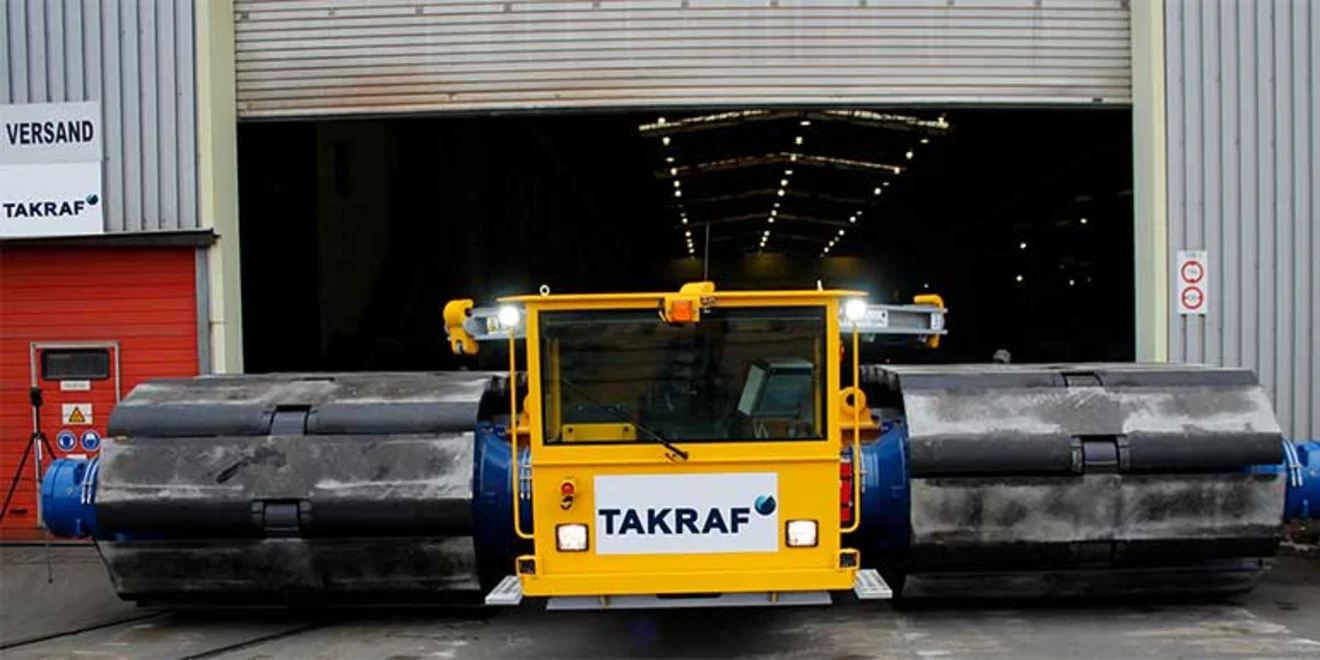

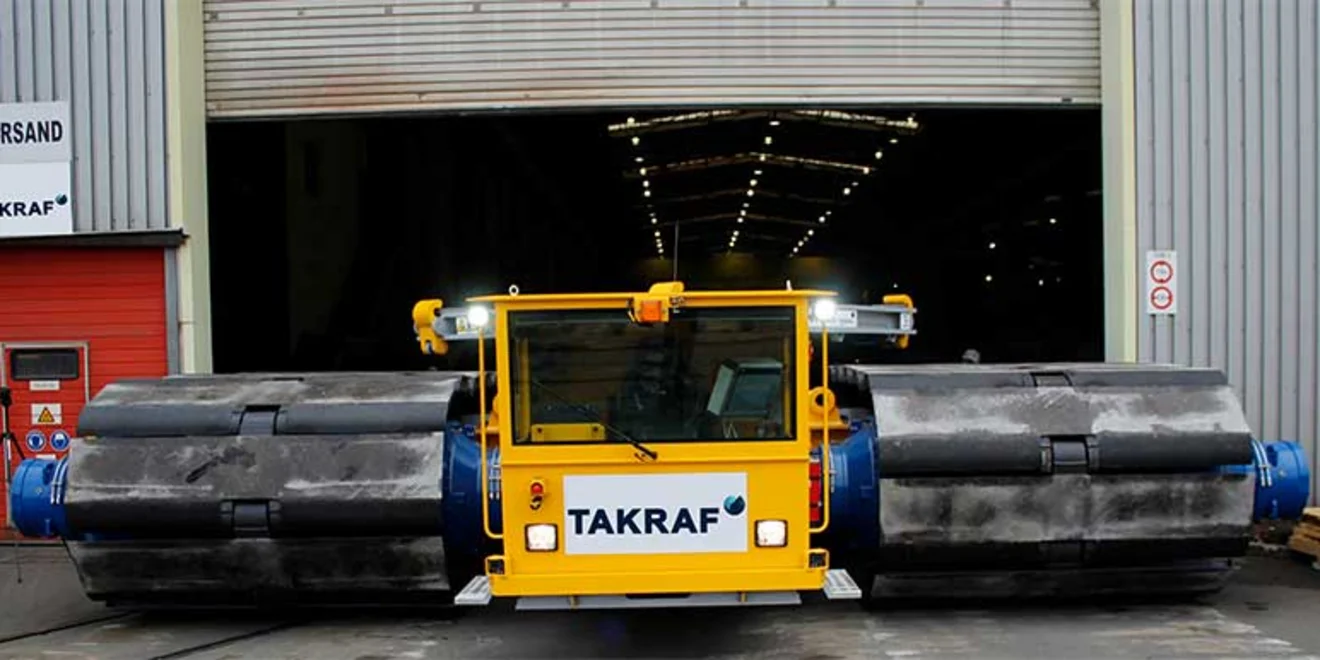

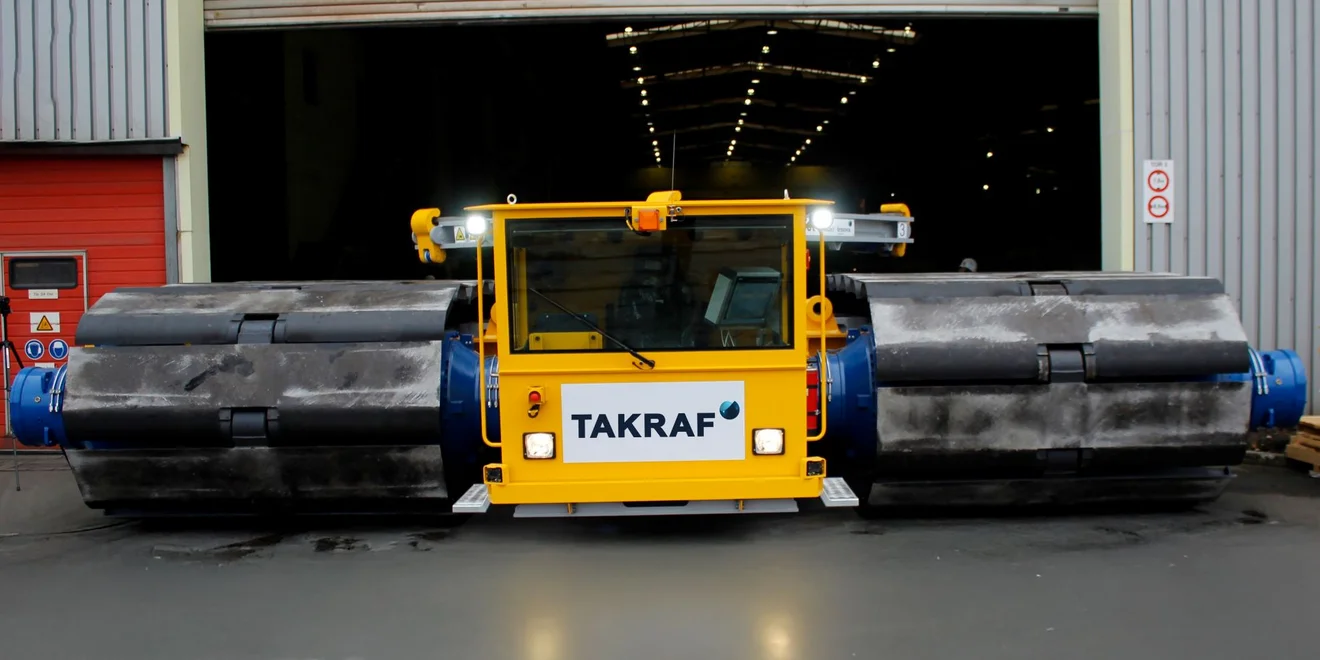

TAKRAF Transport Crawler RT 500
The transport crawler, designed for a 500 t payload with a 500 mm load eccentricity, features a compact design to meet the client's narrow access requirements and includes an automatic fire-detection system to comply with safety standards.
Key Facts
- Project name
- Transport crawler RT 500
- Customer
- VALE S.A.
- Plant location
- Carajás open pit iron ore mine, Brazil
- Commissioning
- 2015
Would you like further information?
Special design for crawler in the Carajás iron ore mine
The transport crawler was designed for a payload of 500 t with an eccentricity of the load of 500 mm. One special feature of the project was the low geometry caused by an extremely narrow access opening required by the client. So the challenge was to design a very compact machine. In compliance with local and client-specific safety standards, an automatic fire-detection system was installed.
Facts and Figures - TAKRAF Transport Crawler RT 500
| Project figures | Length | 12,100 mm |
| Width | 8,800 mm | |
| Operating characteristics | Loading capacity out of the center | 500 t |
| Loading capacity in the center | 580 t | |
| Maximum temperature | + 40 ° | |
| Minimum temperature | + 15 ° | |
| Travel speed without load | 0 - 24 m/min | |
| Travel speed with full load | 0 - 4.2 m/min | |
| Maximum eccentricity of the load at nominal load: | 500 mm |
