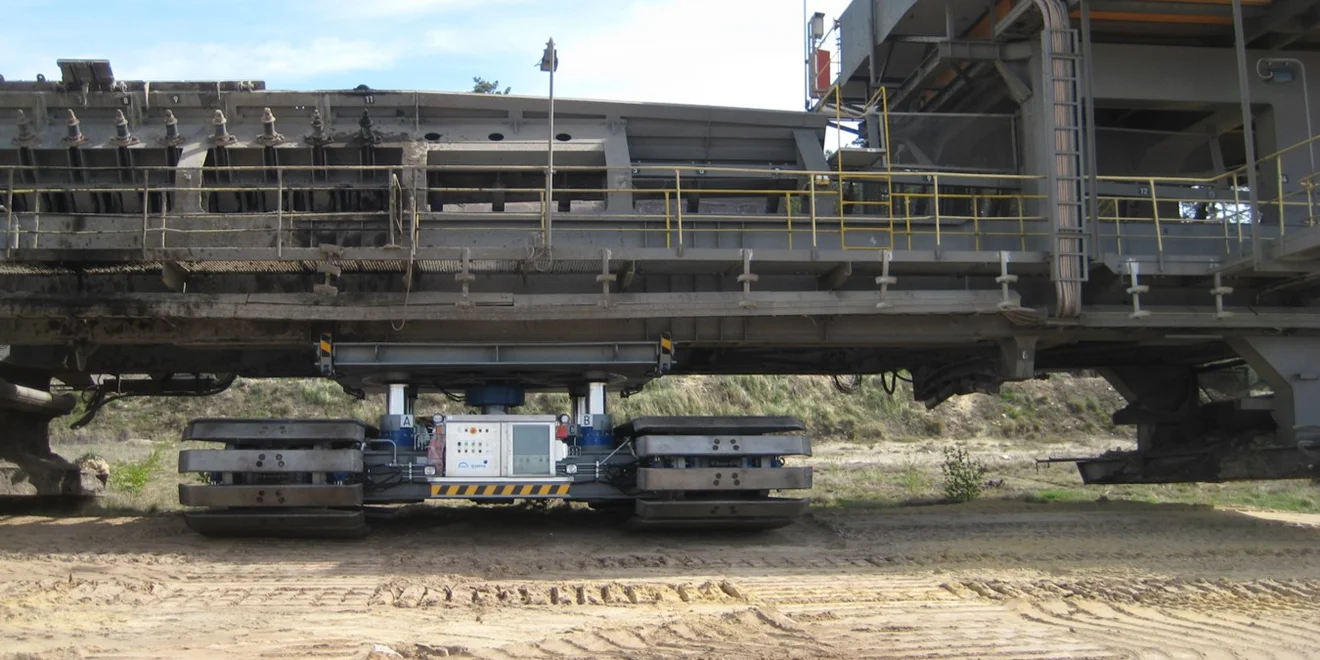

TAKRAF Transport Crawler RT 250
Turnkey project for the Welzow-Süd open-pit mine in Germany.
Key Facts
- Plant location
- Open Pit Welzow – South, Germany
- Customer
- VATTENFALL EUROPE Mining AG
- Project type
- Turnkey project
- Commissioning
- 2012
Would you like further information?
Facts and Figures - TAKRAF Transport Crawler RT 250
| Project Figures | Length: | 8,400 mm |
| Width: | 7,000 mm | |
| Height (hydraulic cylinders moved in): | 1,700 mm | |
| Stroke of hydraulic cylinders: | 600 mm | |
| Operating Characteristics | Loading capacity out of the center: | 250 t |
| Center | 300 t | |
| Operational inclination (longitudinal/transverse): | 1:5 / 1:10 | |
| Travel speed | ||
| Without load: | 0 – 30 m/min | |
| With full load: | 0 – 6 m/min | |
| Ground pressure | ||
| Without load: | 4.1 N/cm² | |
| With 250 t load: | 16.9 N/cm² | |
| Crawlers | Length: | 6,820 mm |
| Width: | 2,000 mm | |
| Center distance between sprockets: | 5,655 mm | |
| Power of diesel engine: | approx. 186 kW |
