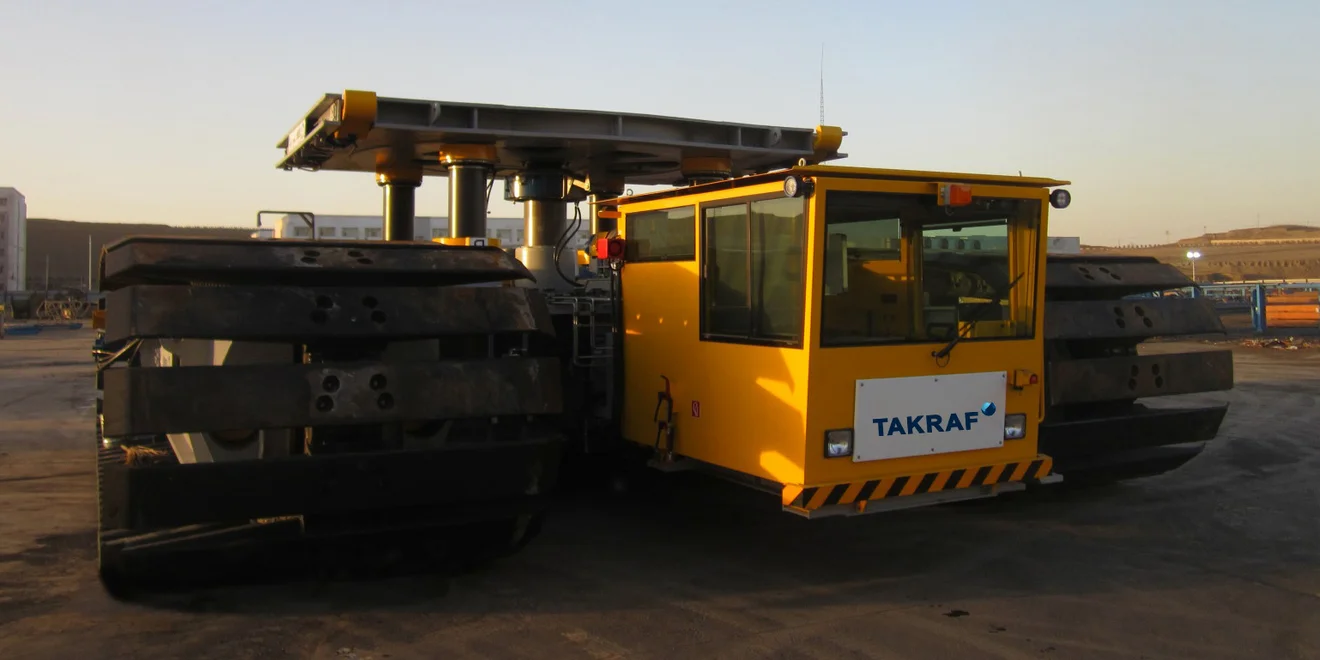

TAKRAF Transport Crawler RT 350
Engineering, design, fabrication, delivery, installation and test of a TAKRAF Transport Crawler for China.
Key Facts
- Plant Location
- Shouzhou Donglutian, China
- Customer
- China Coal Pinshou Group Corp.
- Project Scope
- Engineering, design, fabrication, delivery, installation and test.
- Commissioning
- 2014
Would you like further information?
Facts and Figures - TAKRAF Transport Crawler RT 350
| Project figures | Length | 12,000 mm |
| Width | 8,000 mm | |
| Operating characteristics | Loading capacity out of the center | 350 t |
| Loading capacity in the center | 450 t | |
| Travel speed without load | 0 - 25 m/min | |
| Travel speed with full load | 0 - 10 m/min | |
| Max. eccentricity of the load | at nominal load | 500 mm |
| at partial load 250 t | 70 mm | |
| Crawlers | Type of transmission | Planetary gear, multi stage |
| Hydraulic motors | Axial piston motors |
