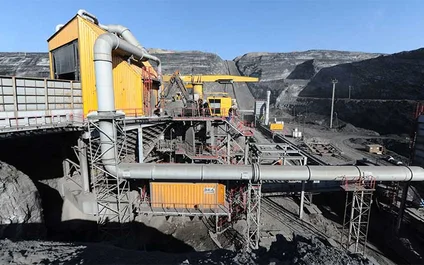

Kazakhstan
Hard Rock Sizers
Based on the experience of TAKRAF in coal crushers and crushing plants, the first hard rock sizers for…
Key Facts
- Feed size
- Up to 2,600 mm
- Rock hardness
- Up to 280 MPa*
- Capacity
- 100 - 14,000 t/h
*subject to testing at TAKRAF Minerals Laboratory
Would you like further information?

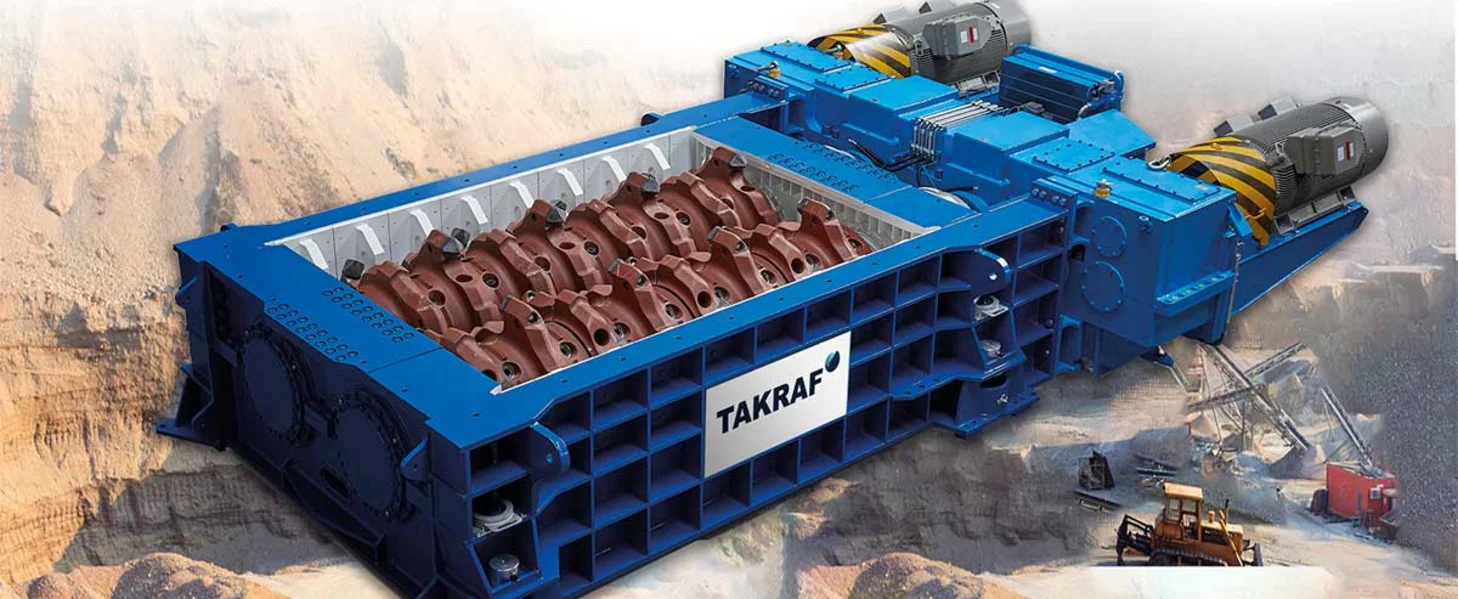

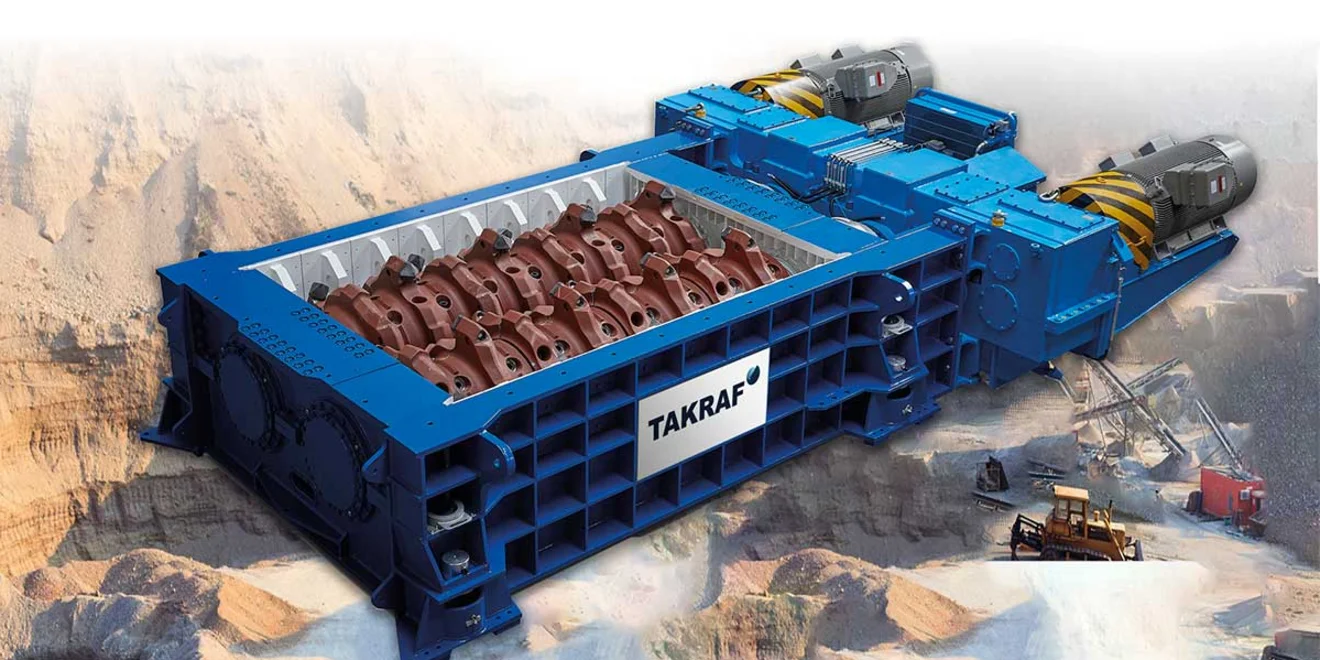

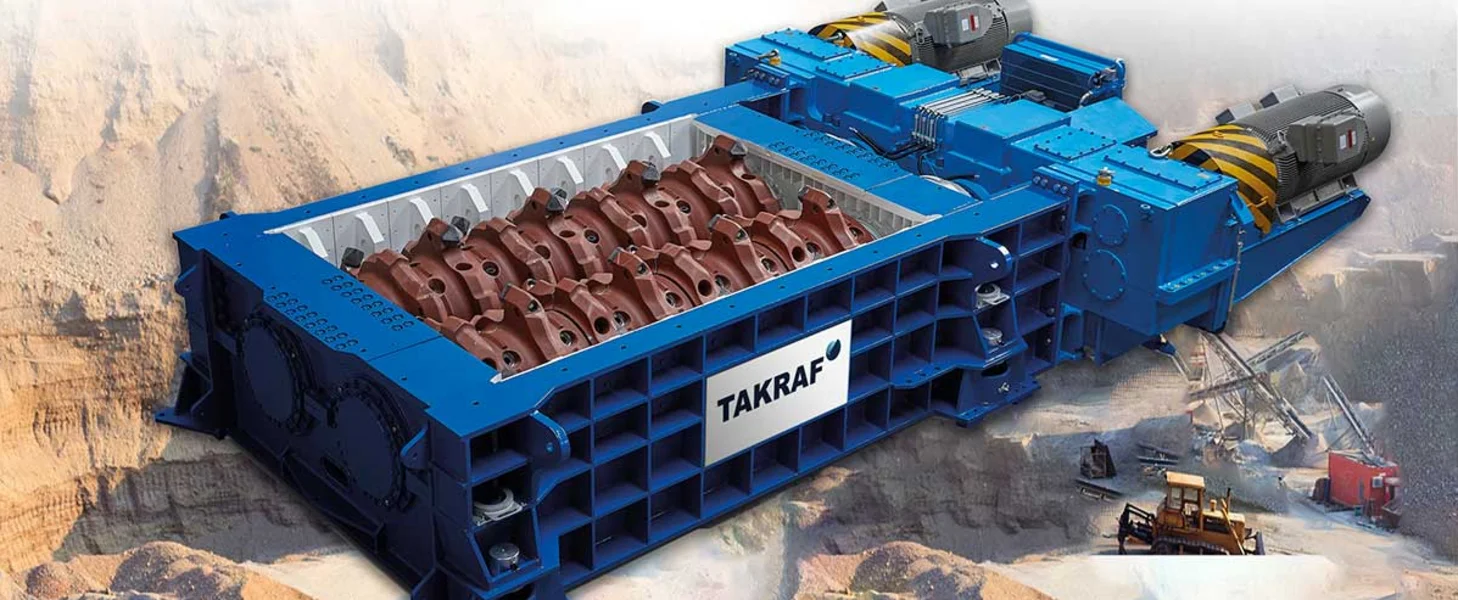

TAKRAF X-TREME Class Sizers
The TAKRAF X-TREME Class Sizer represents a new generation in sizing technology and is specifically designed for hard rock sizing applications.
TAKRAF sizer portfolio
TAKRAF Group’s sizer portfolio covers primary and secondary (as well as tertiary) sizing applications. We have applied our extensive experience in the mining and minerals industries in the design of our sizers, in order to ensure that our machines are optimized for reliability and maintainability.
Product range
06 Series
08 Series
12 Series
14 Series
18 Series
Roll centers (mm)
620*
790*
1,050
1,300
1,550
Typical feed size (mm)
125-400
250-600
600-1,200
800-1,400
1,200-2,500
Typical product size (mm)
40-150
50-150
150-350
250-350
350-450
Typical throughput (t/h)
up to 2,500
up to 4,000
up to 6,000
up to 10,000
up to 14,000
Benefits
Low Profile
Sizers are low profile and lightweight machines. Crushing plants which include sizers benefit from substantial savings in plant CAPEX and reduced height of the mechanically stabilized earth wall compared to other types of crushers.
Versatile and reliable crushing
Sizers can reliably process a wide range of materials at a high throughput. The two counter-rotating rolls allow the sizer to operate with direct-dumped or controlled feed and make the machine the ideal choice in wet and sticky applications.
Optimized and efficient breaking

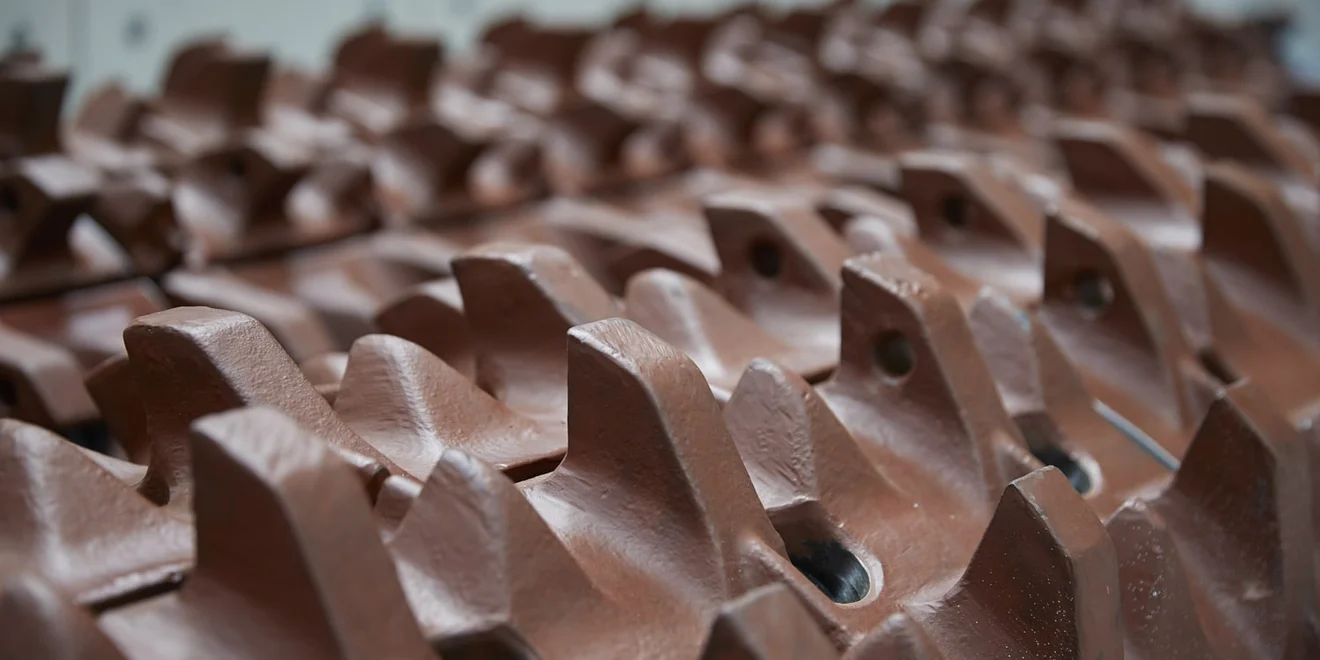

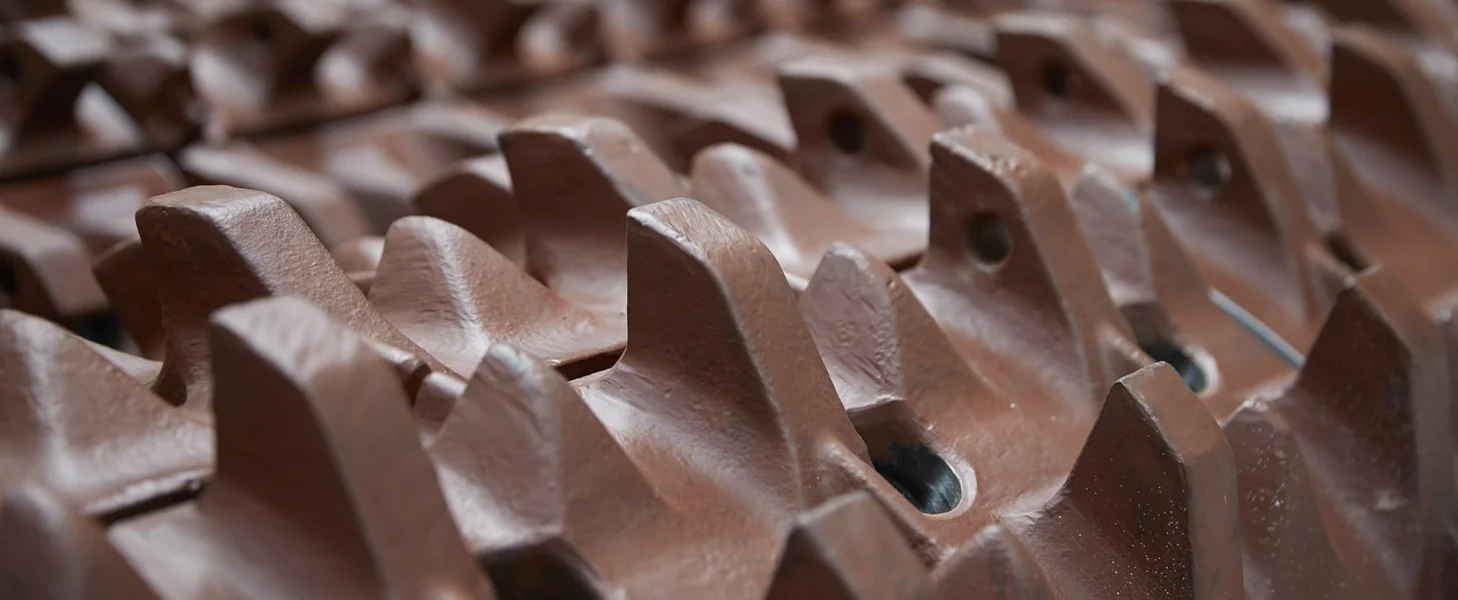

The sizer tooth design is customized to produce an optimally sized orthogonal product, while reducing the amount of fines that are generated. The rotating screen effect also results in less absorbed power per ton of throughput.
Tailored for hard rock applications
Maximized grip allows for maximized crushing forces. Robust components and solid mechanics are utilized along the entire torque train for maximum reliability.
Improved maintenance

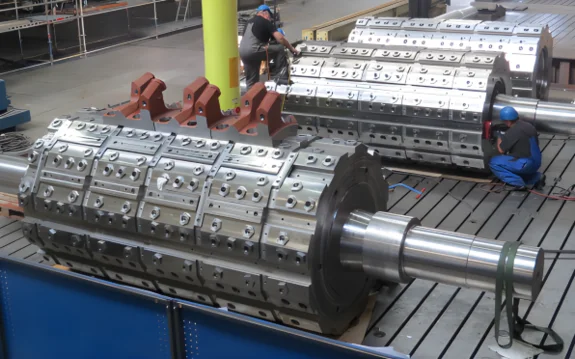

Quick connect segments and boltable primary crushing teeth allow for maintenance without having to remove the shaft.
Customizable segments and drive configurations
TAKRAF Sizers are provided in different drive arrangements to ensure the optimum fit for your plant. Using drive components from established brands ensures better pricing, shorter lead times and greater availability of spare parts.
