Tube Conveyor

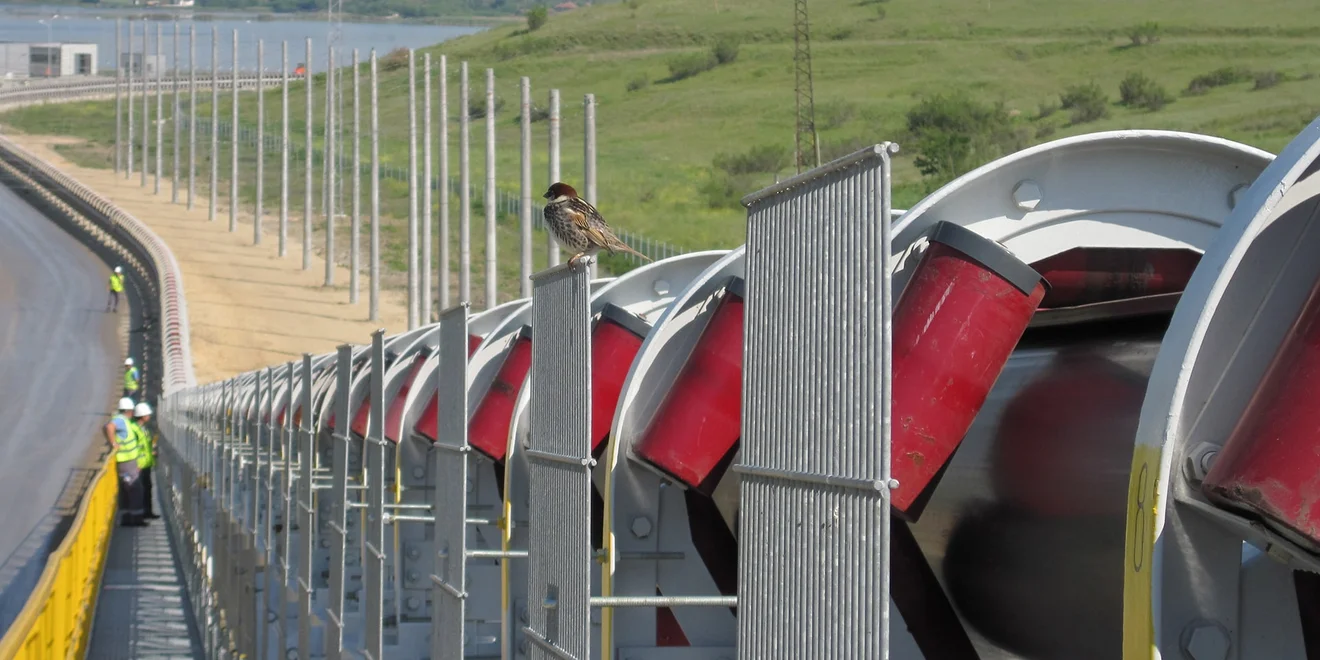

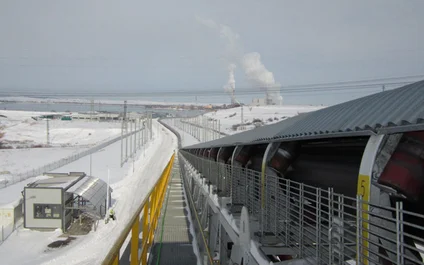

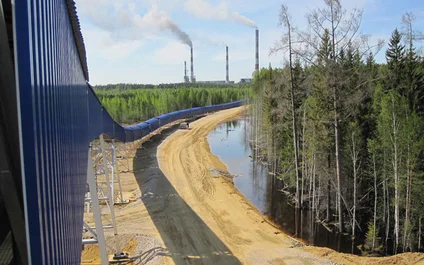

The tube conveyor was chosen to transport residual materials (ash and gypsum) from the power plant to…
Key Facts
- Belt width
- Up to 2,200 mm
- Single flight length
- Up to 4.4 km
- Capacity
- Up to 2,200 t/h
- Very tight
- Horizontal and vertical curves
Would you like further information?
TAKRAF Tube Conveyor System

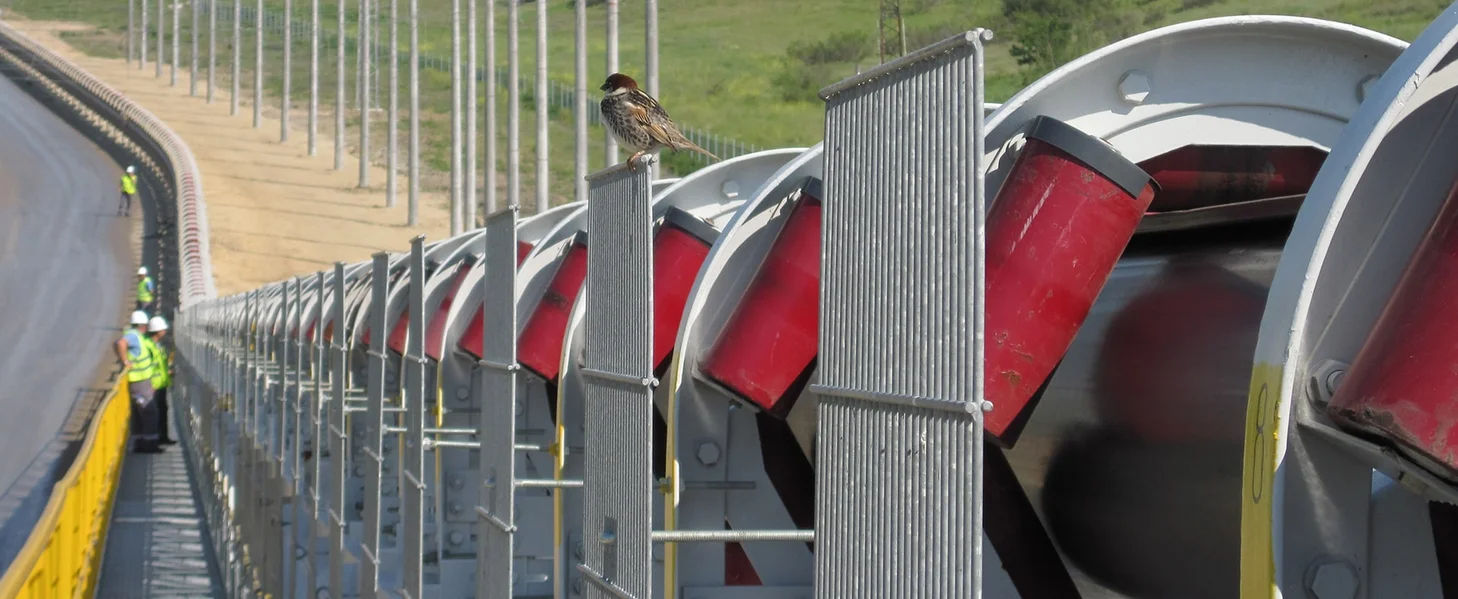

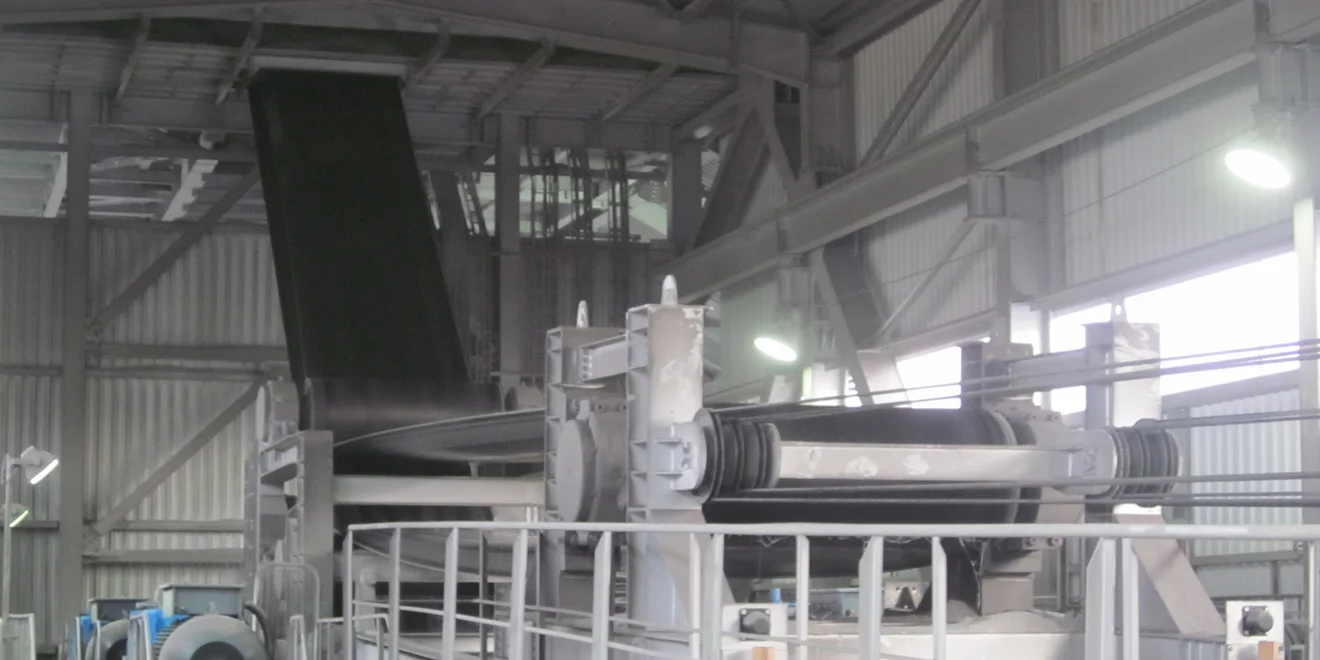

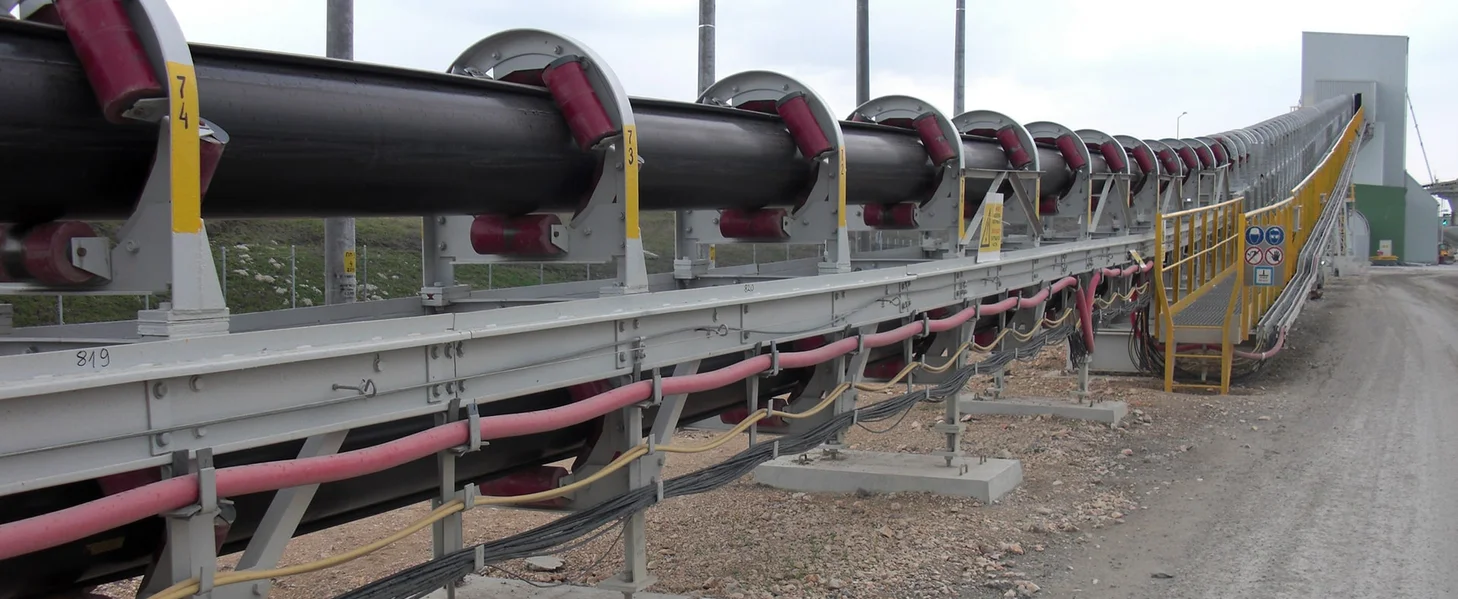

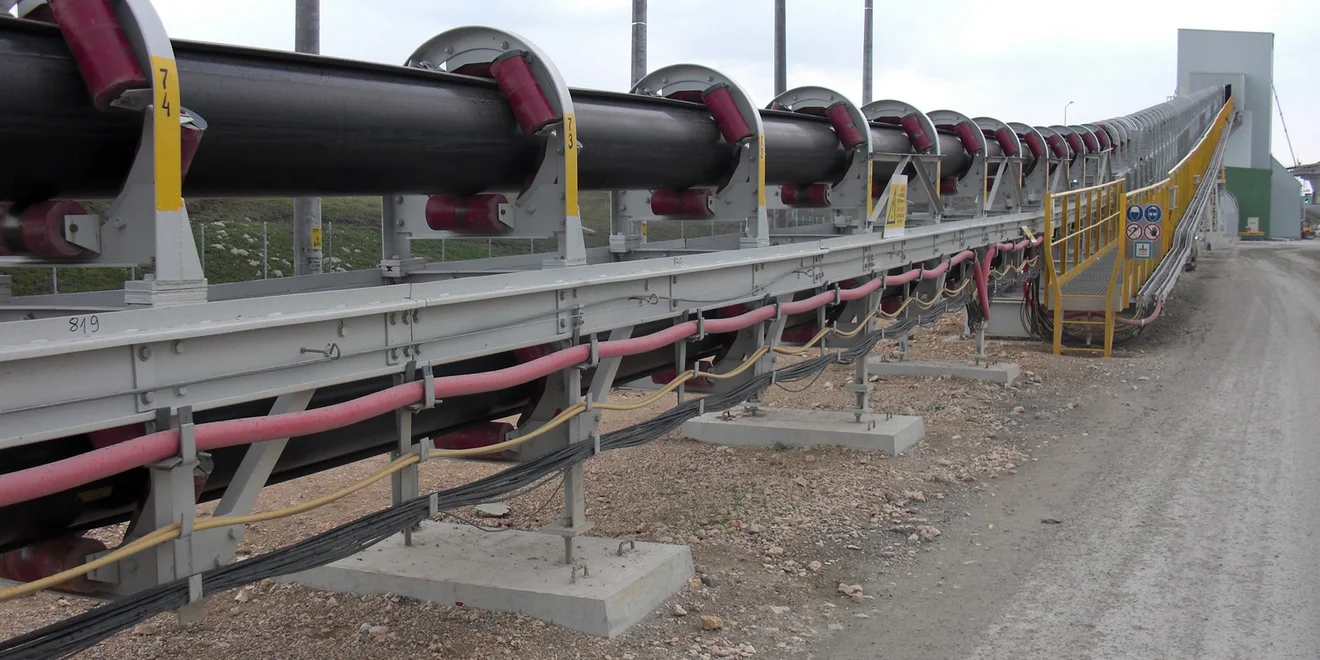

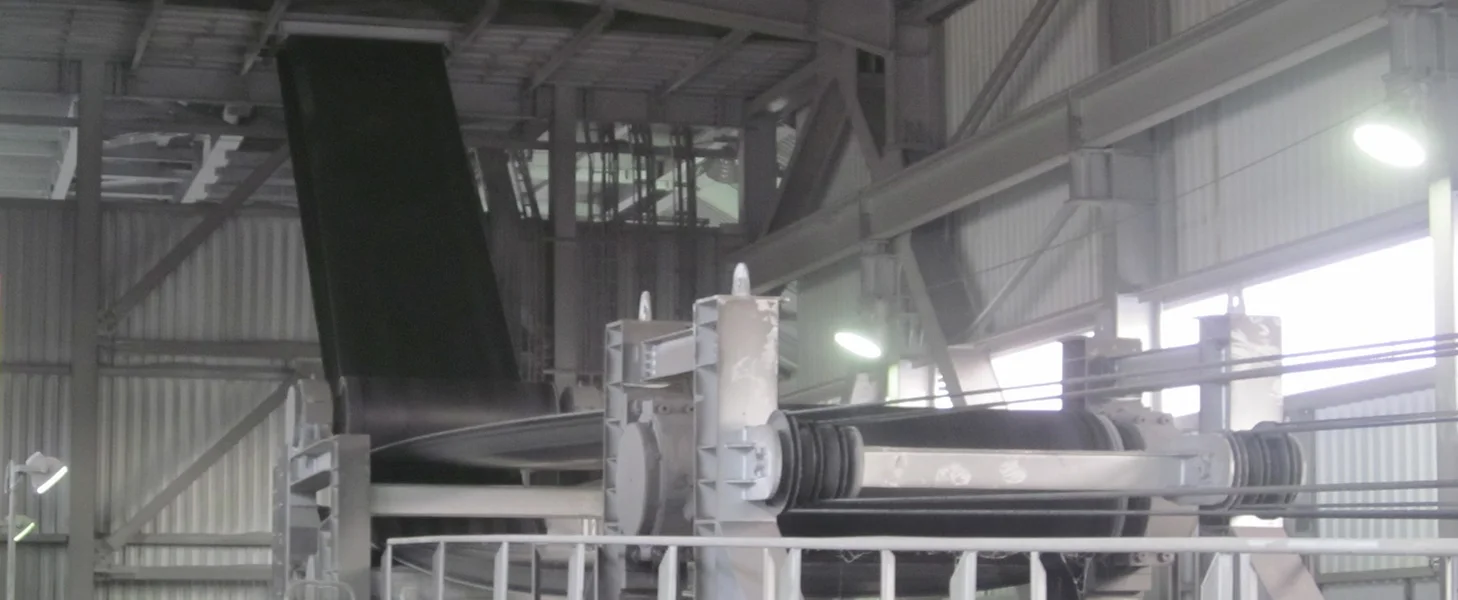

A tube conveyor (pipe conveyor or Japan Pipe Conveyor) resembles a conventional conveyor at the tail end where the material is loaded. From here, the open belt then passes through a series of transition idlers that shape the belt to form a tube for the length of the conveyor. Just prior to the head end, the encapsulated belt passes through another set of transition idlers to open up and allow conveyed material to be discharged in the standard manner. On the return side, the belt is again formed into a tube shape.
1. Environmentally friendly
Tube conveyors are becoming increasingly popular, especially in environmentally sensitive and built-up areas, as interactions between the environment and conveyed material (such as dust emissions and water absorption due to rain or snow) are eliminated by encapsulating the material while in transportation. Valuable product is also protected from theft along the conveyor path.

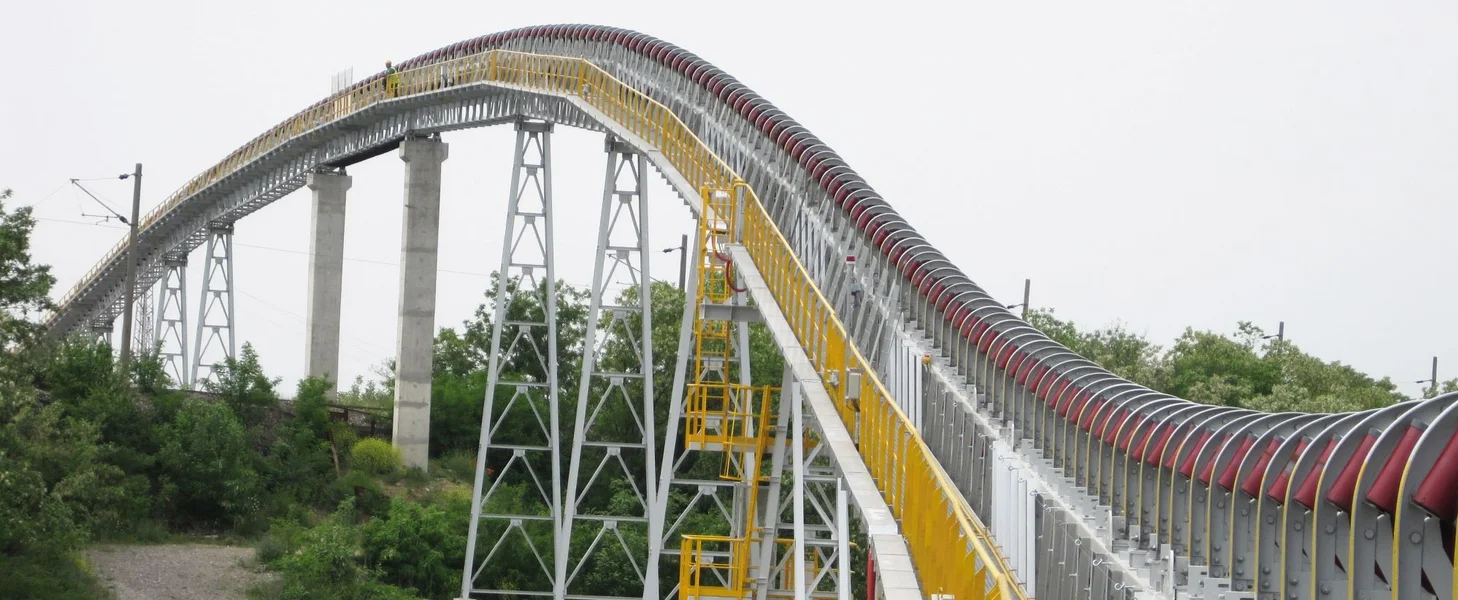

2. Curved and steep incline conveying

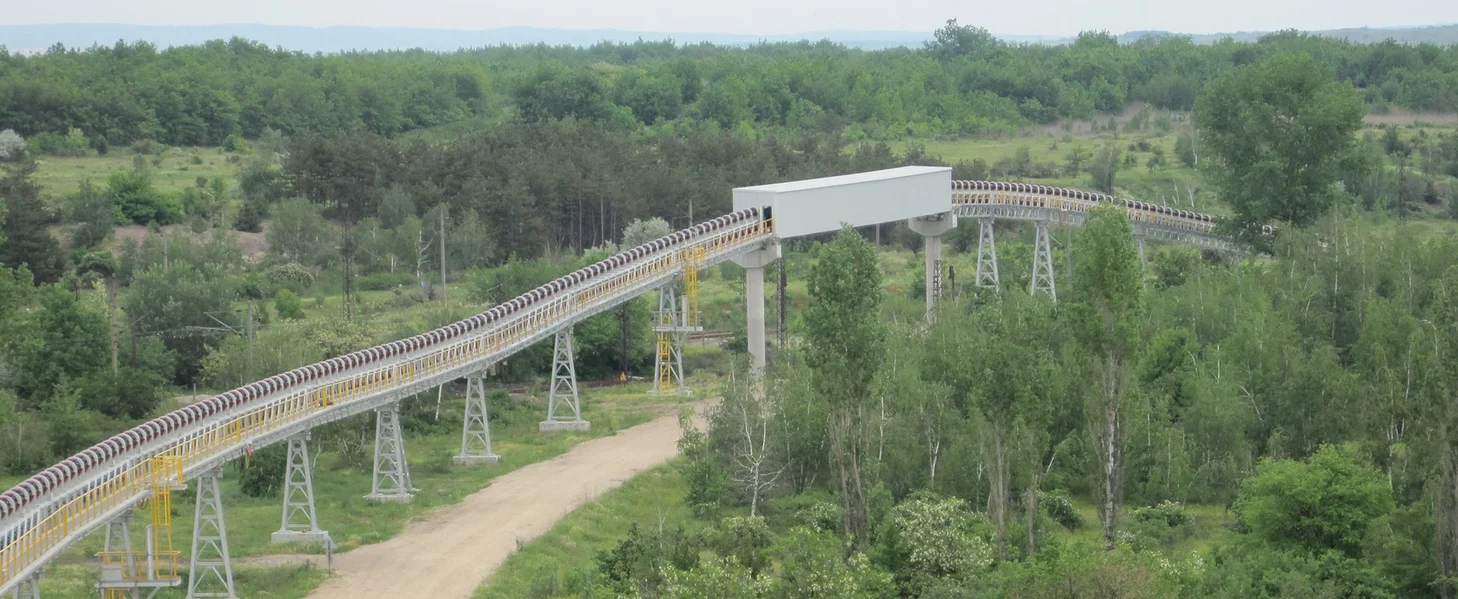

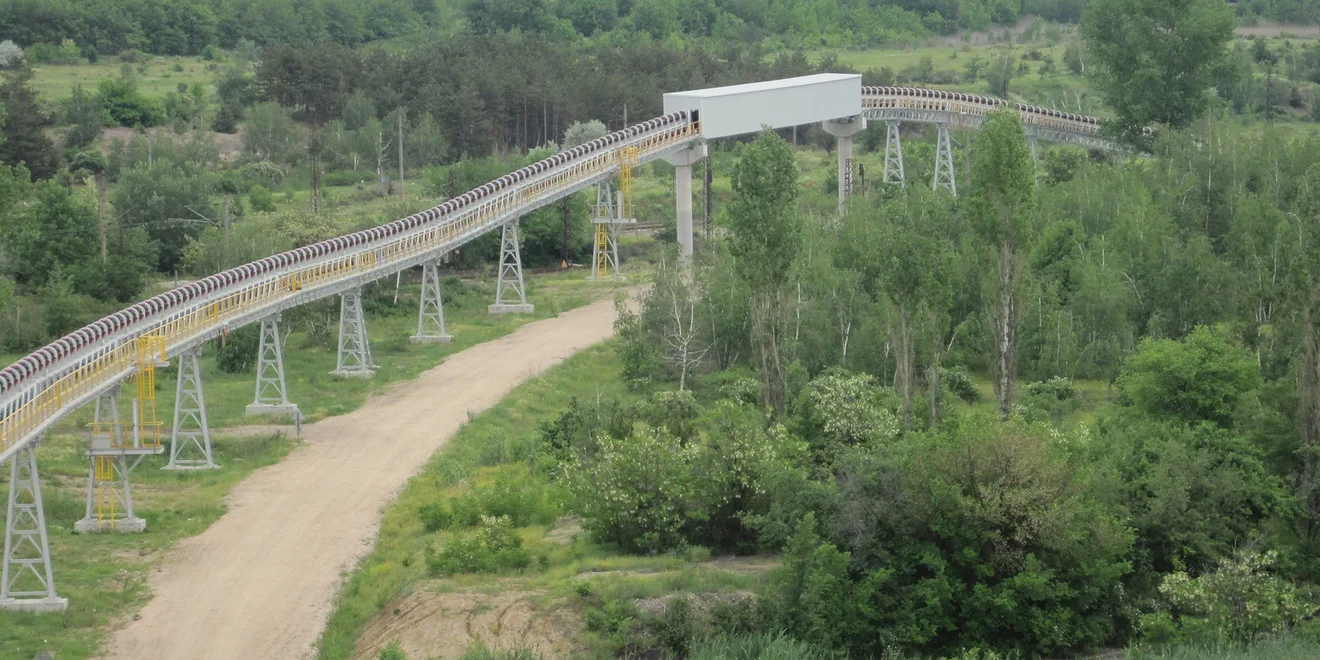

Compared to typical belt conveyors, tube conveyors have very small curve radii, while the tube shape allows the conveyor to curve horizontally as well as vertically. This very flexible conveyor routing often means that a single tube conveyor can replace several conventional belt conveyors, reducing:
- Requirements for multiple transfer points and drives that involve costs, space and power to lift product at repeated transfer points
- Product degradation and dust generation at transfer points
- Costly chute liner replacements
Increased friction between the tube shape of the conveyor and material also makes steep inclines possible – generally up to around 50% steeper than what is possible with a conventional conveyor. This means that:
- Overall length of conveyor system may be reduced
- Plant footprint can also be reduced with further cost savings
TAKRAF boasts an impressive global record of tube conveyor installations across various commodities. With the increased attention and focus on environmental sustainability, a tube conveyor may be the conveying solution you are looking for.
Benefits
Customized solutions
TAKRAF Tube Conveyors are designed for each individual application, considering environmental aspects, bulk material properties and routing requirements.
System synergies
TAKRAF provides the equipment required upstream/downstream of the conveyor, including processing equipment and loading/unloading technology.
Proven solutions
TAKRAF has extensive experience in conveyor calculations and conveyor design. All calculations, such as standard conveyor calculations, dynamic analyses and curve calculations, are done in-house with proven tools.
