References
Peru

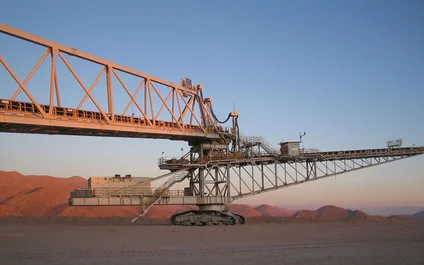

Spreader A2Rs (H) 5220.55
The spreader was designed to dump a massive leach pad in the irregular deep valleys close to the…
Serbia

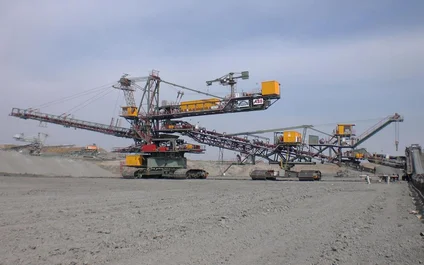

Spreader A2Rs-B 8500.60
Kazakhstan

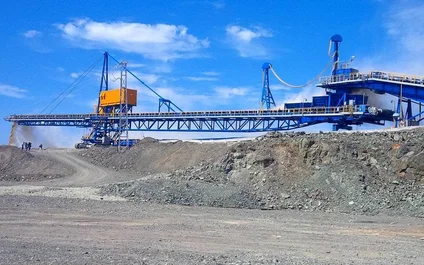

Spreader AR-B 2000.100

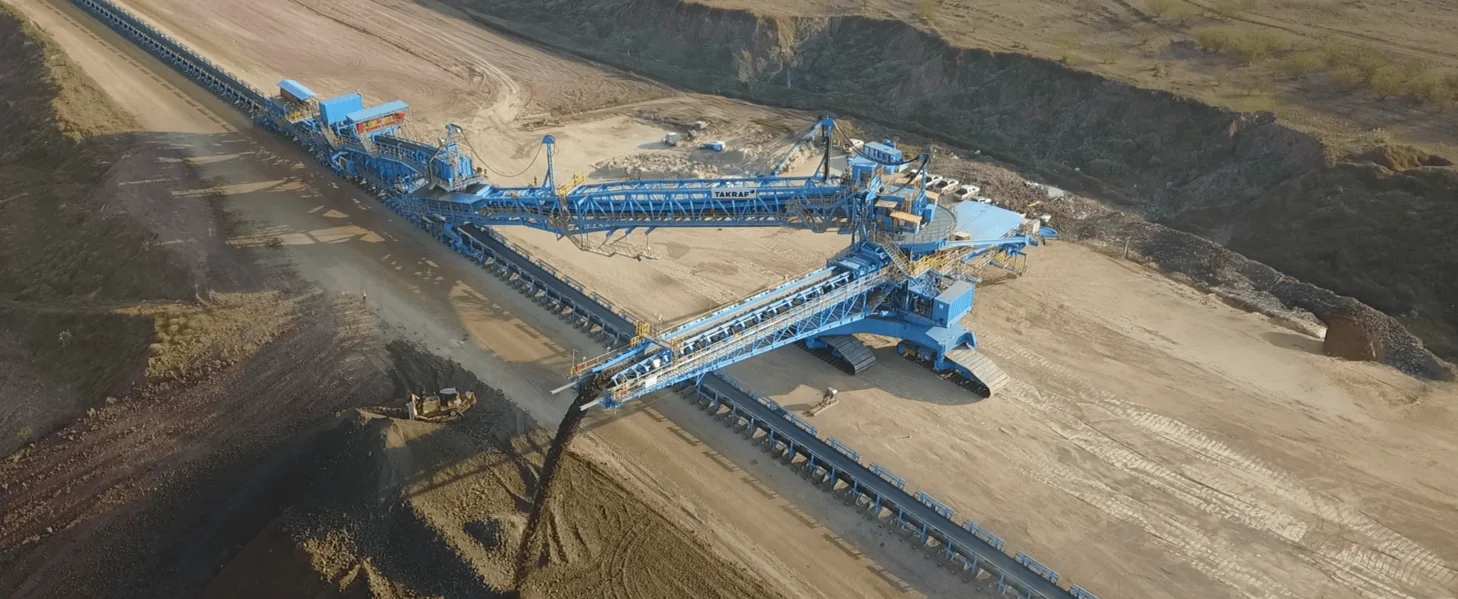

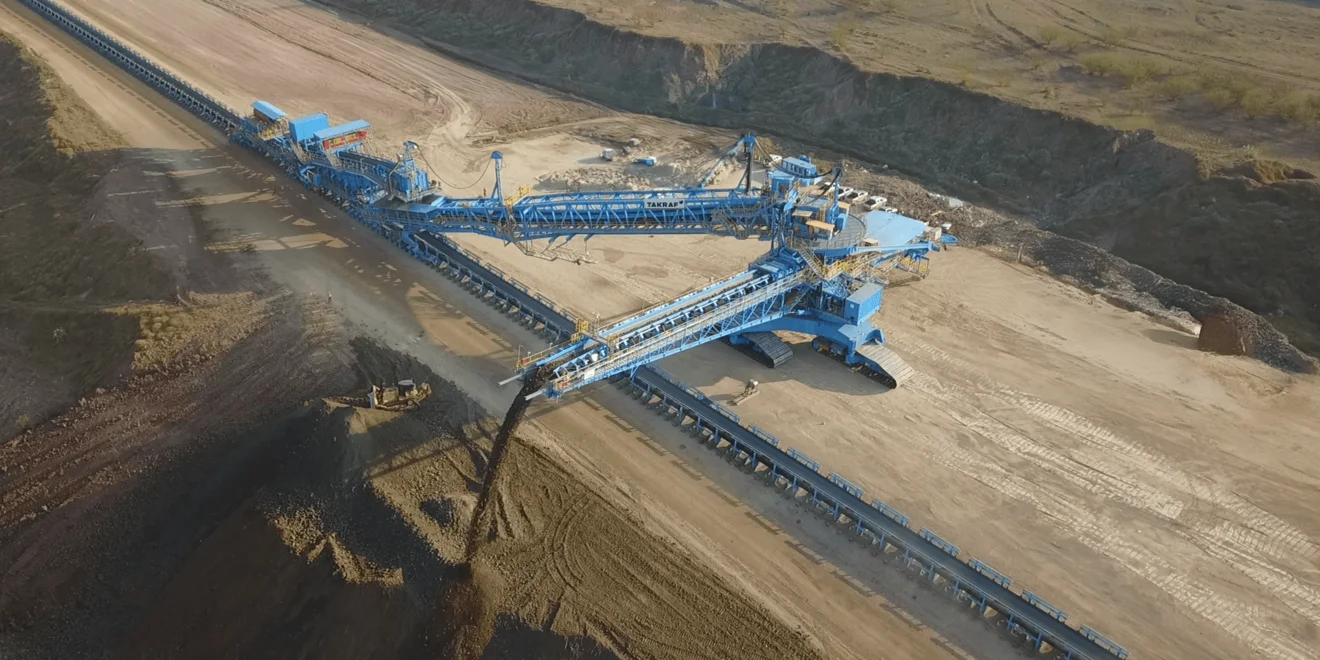

Thailand
Key Facts
- Capacity
- Up to 27,600 t/h
- Outreach discharge
- Up to 195 m
- Outreach receiving
- Up to 90 m
- Dumping height
- Up to 50 m
- Conveyor belt width
- Up to 2.6 m
- Operational temperatures
- -40°C - +50°C
Deviations possible on request.
Would you like further information?
TAKRAF Spreaders
Spreaders are mobile dumping machines operating continuously in deep and high cast mode at the end of the mining system, receiving material from a tripper car or mobile transfer conveyor. In principle, the selection and design of spreaders are determined by the operating conditions (e.g. the properties of the dumped material) and the operational, geotechnical and safety requirements. The length of the discharge boom is significant for the size and the weight of the spreader.
TAKRAF Group delivers spreaders over a range from compact to large designs.
Possible applications:
- Single-boom design
- Two-conveyor compact design
- Conventional design with rope-suspended discharge boom
- Cross-pit design
Benefits
Matching your requirements
TAKRAF Spreaders are tailored to specific site and operational conditions, including different linked mining machines and varying dump heights. Using our extensive expertise, we assist you to select the right equipment for your application.
System synergies
TAKRAF provides the equipment required upstream of a spreader, which includes conveyors, connected processing equipment, loading/unloading technology and entire stockyard or dumping systems.
Value for money
Our machines operate flexibly at the end of the mining process and increase the shifting width of the system.
