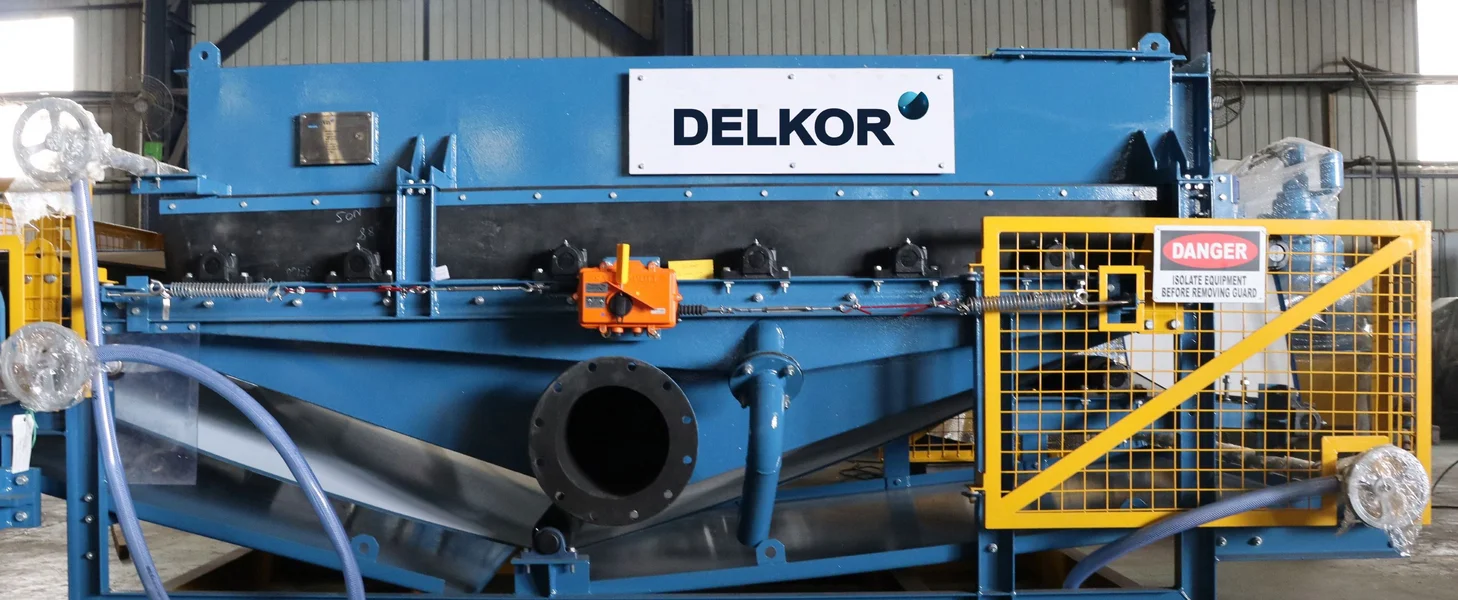

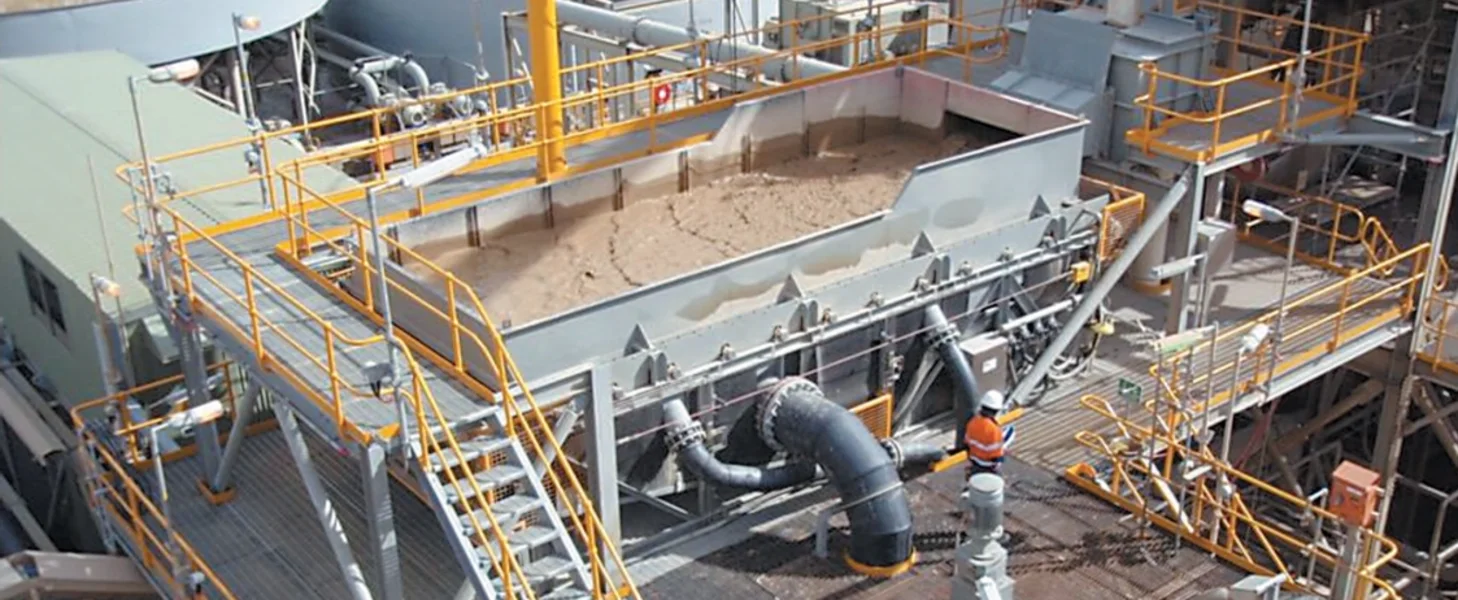

DELKOR Belt Linear Screens

The DELKOR Belt Linear Screen (BLS) was initially developed through extensive test work to address a major problem in carbon-in-pulp (CIP) and carbon-in-leach (CIL) processes in the gold industry, concerning the effective removal of trash from slurry. The BLS is now widely applied for other commodities such as iron, copper and mineral sands and for a wide range of trash removal applications.

The DELKOR BLS efficiently separates the relatively small amount of well-defined size fractions that exist in ground slurries, and which are coarser than the particles required for downstream processing. This ultimately safeguards and reduces any downtime of downstream equipment and improves overall plant performance. Also explore DELKOR’s Filter Presses for dewatering mineral process slurries or APIC Jigs.

• Gold plant - to remove fiber and scalp oversize
• Flotation plant - to remove fiber to protect froth overflow points
• Hydrocyclone -  to remove coarser/foreign particles, which may choke spigot
• Wet High Intensity Magnetic Separation (WHIMS) - to scalp/discard coarse material, which causes matrix choking and drum damage
• Filtration - to remove foreign and coarse particles, which damages cloth
• Paper and pulp - to remove fibrous material in paper and pulp industry
• Autoclave - to scalp feed to prevent “in vessel sanding”

• Option for reverse feed arrangement
• Spillage launders
• Full-length drip trays
• Side curtains/spray reduction panels
• 2-stage cloth sway switches
• Split spray bars with quick fix nozzles
• Feed distribution weirs
• Cloth tensioning weights
• Local control cabinets
• High-pressure spray bars with self-cleaning provision
• Bolted construction designs for ease of transportation
• Option of self-cleaning spay bars
• Bearing lubrication systems
• Variable speed drive
