Overland Conveyor System
Copper ore is moved from the crusher to the processing facilities via an overland conveyor with an 8,120 m pulley center distance, following the natural ground profile and with 63% of its length following horizontal curves with up to 17° banking angles.
Key Facts
- Project name
- Overland conveyor system
- Customer
- Codelco
- Plant location
- Radomiro Sulfurus
- Commissioning
- 2010
- Length/lift
- 8,120 m / -236 m
- Capacity
- 7,700 t/h
Would you like further information?

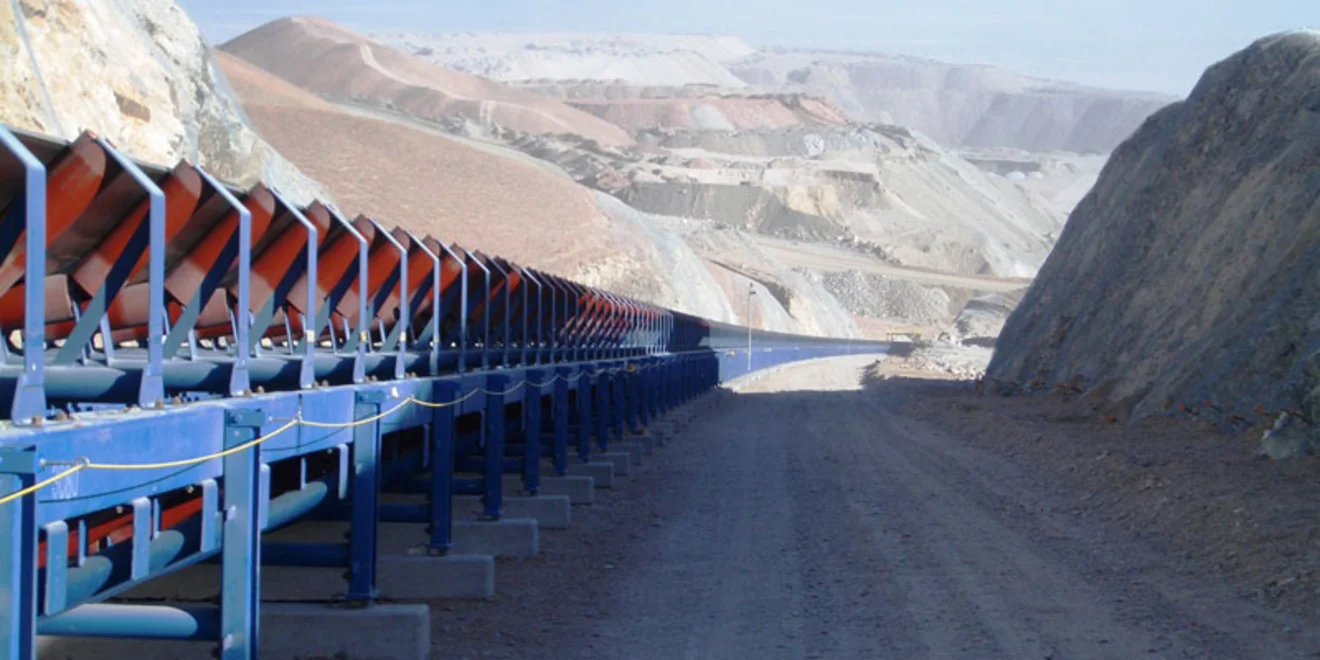

Overland conveyor with 8,120 m pulley center distance
Copper ore is moved from the crusher to the processing facilities via the main overland conveyor, which has a pulley center distance of 8,120 m. The conveyor follows the natural ground profile, with approximately 63 % of its length running through horizontal curves, including sections with both convex and concave alignments. To accommodate steep horizontal curve radii, banking angles of up to 17° are combined with idler tilt.
