TAKRAF Shifting Heads
Improve operational efficiency with reliable, precise shifting for bench conveyors
Key Facts
- Shifting head type
- Hydraulically actuated
- Rail type
- Tailormade
- Belt width
- Tailormade
- Operational temperatures
- -43 – +50 °C
- Hoisting capacity
- 150 kN
- Transverse shifting capacity
- 220 kN
- Longitudinal shifting capacity
- 90 kN
- Shifting distance
- Approx. 0.5 – 1 m
- Travelling speed
- 6 km/h
- Shifting capacity
- 3,000 – 6,000 m²/h
- Hydraulic – working pressure
- 160 bar
Deviations possible on request.
Would you like further information?
Reliable shifting solutions for smooth conveyor operation

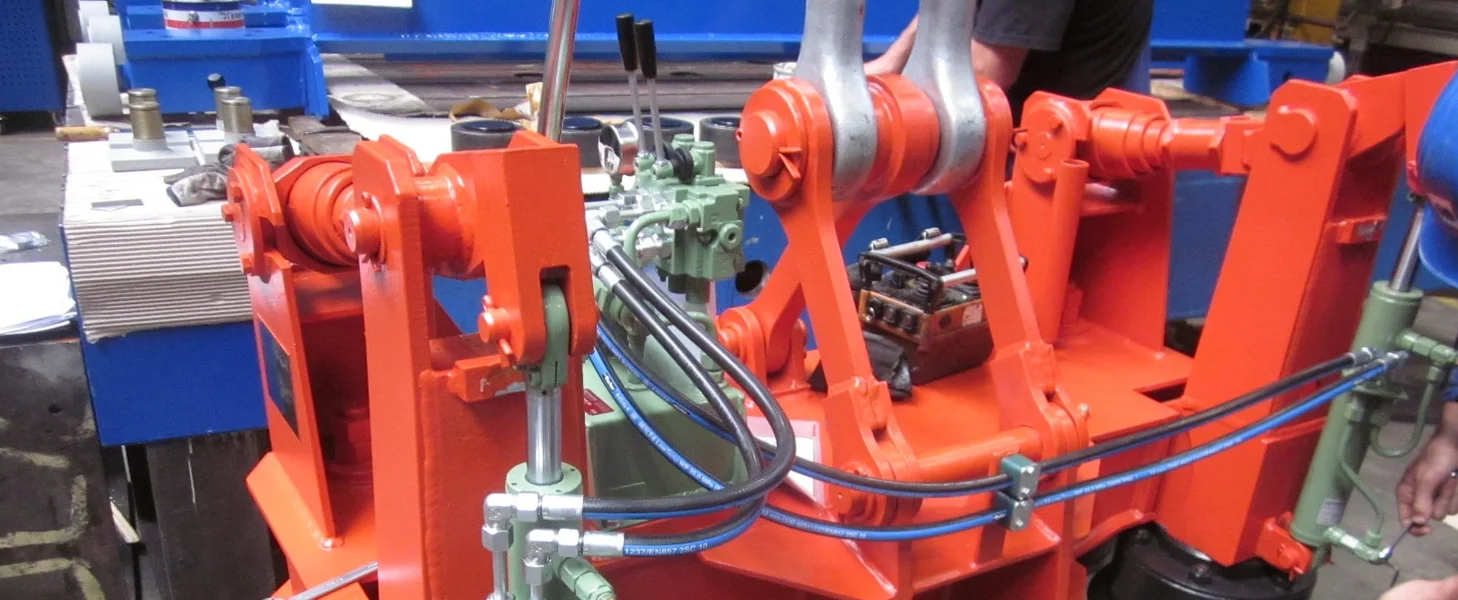

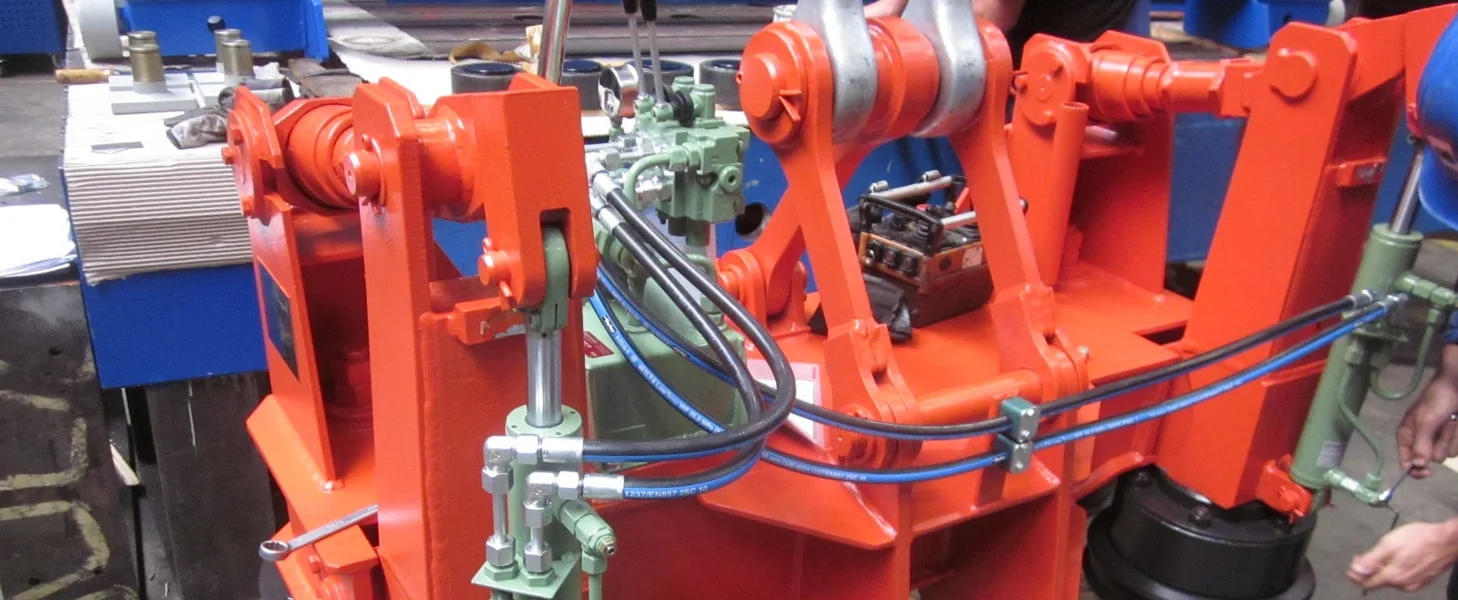

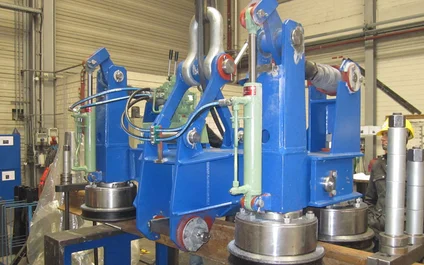

A shifting head is a special attachment to a shifting vehicle for rail clamping when a bench conveyor is moved into a new position by the shifting vehicle.
Bench conveyors, which are operated together with mining and dumping machines, have a shiftable design, with the conveyor modules equipped with steel sleepers and rails to allow easy shifting. The shifting procedure is done by the shifting vehicles, which travel up and down the conveyor line and move the conveyor in small steps into the new position.
TAKRAF Group’s services cover shifting head fabrication and testing. Shifting heads are adapted to the specific rail type and the shifting vehicles used in the mine.
Benefits
Matching your requirements
TAKRAF Shifting Heads are tailored to specific site and operational conditions. With our extensive expertise, we assist you select the right equipment for your application.
System synergies
TAKRAF provides the equipment required upstream and downstream, including bucket-wheel excavators, conveyors, connected processing equipment, loading/unloading technology and entire stockyard or dumping systems.
Value for money
Our equipment offers flexible operations and reduces system shifting times.
