Overburden, Rocks and Sand: Mining, Removal and Responsible Management
Overburden - the soil, subsoil and waste rock that lie above an ore body or quarriable stone is the first material a miner must remove to access valuable rock such as ore, sand deposits or even dimension stone such as granite. Although such material has no economic value, it must be removed and safely deposited to access the underlying resource. As a result, managing this large volume of material - often several times greater than the volume of the ore - is one of the most significant operational and environmental challenges in mining. Efficient and well-planned overburden removal is thus essential for safety and economics.
TAKRAF Group Capabilities in Overburden Removal and Sand Mining
TAKRAF is a leading global supplier of high capacity and efficient continuous mining equipment. When it comes to large volumes that need to be removed, transported and deposited (dumped), TAKRAF leads the way. We provide solutions across each of the generic value chain steps below.

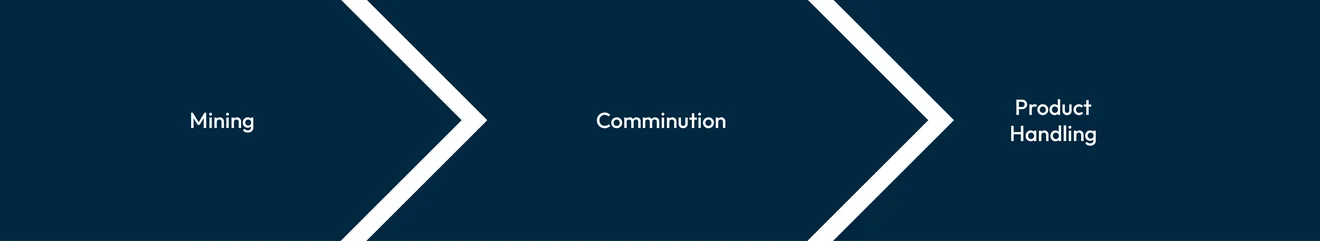

Overburden Removal and Sand Mining: TAKRAF Group Capabilities by Process
- Conveyors & Feeders (employed across the entire value chain)
- Conveyors – Note: All conveyor types, from regular belt to tube (pipe) or even overland conveyors, with or without advanced Gearless Conveyor Drive (GCD) technologies – in fact, TAKRAF is currently the only Original Equipment Manufacturer (OEM) with GCD references in operation.
- Feeders (including apron, belt)
- Belt wagons and mobile transfer conveyors
- Conveyor bridges
- Mining:
- Comminution:
- Crushing:
- Crushing plants – Note: TAKRAF Crushing Plants can include our TAKRAF X-TREME Class Sizer or 3rd party crushing technologies
- IPCC systems
- Sizers (including X-TREME Class)
- Crushing:
Overburden Removal in Kazakhstan: A Case Study in the Benefits of an IPCC System
In-Pit Crushing & Conveying (IPCC) systems cut truck haulage to a minimum and build operational resilience - they substantially reduce operational expenditure and hold other environmental and safety benefits too. Conventional truck haulage in surface mines is well established and such a system provides excellent flexibility; however, it can also contribute up to 60% of the overall mining cost. IPCC represents a viable, safer and less fossil fuel dependent alternative.
For a large overburden project in Kazakhstan, TAKRAF delivered a complete IPCC system for overburden removal. The system boasts a capacity of 8,500 t/h with an overall length of 5,500 m and includes:
- 2 x crushing stations (of which one station was retrofitted with a TAKRAF Sizer - the client is evaluating retrofitting the second crushing station with another TAKRAF Sizer too)
- 4 x conveyors
- 1 x tripper car
- 1 x spreader
Key Challenges
Due to the sheer volume of material, overburden management begins at the mine planning stage, where engineers design safe, stable and environmentally sound dump configurations. This includes selecting suitable locations, optimizing slope geometry and integrating drainage and compaction systems. This is an important area where TAKRAF’s experienced team of Mining Technology Center (TMTC) engineers can conduct various Conceptual, Appraisal and Engineering Design Studies. Such studies would consider some of the key challenges below:
- Volume and Land Use: Overburden removal generates massive quantities of waste material, requiring extensive land areas for storage. As mines deepen or expand, available space for disposal becomes limited, forcing operators to design high-capacity, stable dumps within confined footprints.
- Stability and Geological Requirements: Improperly designed or managed overburden dumps can collapse or erode, posing safety hazards and environmental damage. Factors such as slope angle, material composition and drainage all affect dump stability. Landslides or slope failures are major operational risks in surface mines worldwide.
- Erosion and Sediment Control: Rainfall and runoff can cause erosion, washing fine sediments into nearby streams and rivers. This leads to water pollution, siltation and loss of aquatic habitat. Effective drainage and surface stabilization are vital to prevent sedimentation downstream.
- Water Management and Contamination: Overburden may contain sulfide-bearing or reactive minerals that can lead to Acid Mine Drainage (AMD) when exposed to air and water. This creates long-term water quality problems if not controlled through proper design and monitoring.
- Environmental and Social Impact: Large waste dumps alter landscapes, displace vegetation and wildlife and may affect local communities. The visual and dust impacts from overburden dumps can lead to public opposition and stricter regulatory scrutiny.
Waste Rock, Sand Mining and Granite – Further Insight:
Safe Disposal and Stewardship of Waste Rock
Waste rock and overburden are typically stored in engineered dumps or used on-site for rehabilitation and infrastructure. Best practice now favors re-use where possible - using inert rock for road bases, bunds or as geomaterial in construction projects. New ongoing research is also exploring the engineered reuse of overburden to substitute scarce aggregates, which can help relieve pressure on natural sand and gravel resources.
Sand Mining: Scale, Drivers and Impacts
Sand and gravel are the world’s most extracted resources after water and are indispensable for concrete, asphalt and land reclamation - driven by urbanization, infrastructure and coastal land reclamation. This intense demand results in a number of social and environmental issues that need to be managed. Since sand is bulky and expensive to transport, decisions about extraction sites, mitigation and substitution are critical for sustainable supply.
Granite, Dimension Stone and rock quarrying
Granite and other dimension stones are quarried worldwide for architecture, façades and interiors. While dimension-stone operations produce less volume than bulk aggregates, they still require careful overburden stripping, dust suppression, water management and rehabilitation of quarry benches and faces to limit visual, noise and environmental impacts.
Key Takeaways
Effective overburden management is central to sustainable mining. The future lies in integrated mine design, where overburden removal, depositing and rehabilitation are optimized in a collective manner. Combining effective mine planning right from the start with geotechnical engineering, environmental science, digital monitoring and community engagement ensures that overburden removal and disposal is safe, efficient and environmentally responsible - turning a traditional mining challenge into an opportunity for long-term sustainability.
